Underfloor Heating Pipe Calculator

Calculate the estimated pipe length needed for your underfloor heating system.

Results:

Estimated Pipe Length:

Pipe per m²:

Please fill in all fields with valid numbers.

What Are Pipe Centres In Underfloor Heating?

The term 'Pipe Centres' in underfloor heating refers to the distance between the centre of one heating pipe and the centre of the next pipe. This spacing is crucial for determining the overall effectiveness and efficiency of the underfloor heating system. The pipe centres affect how evenly heat is distributed across the floor. Choosing the right pipe centre spacing helps balance heat distribution, energy efficiency, and installation costs.

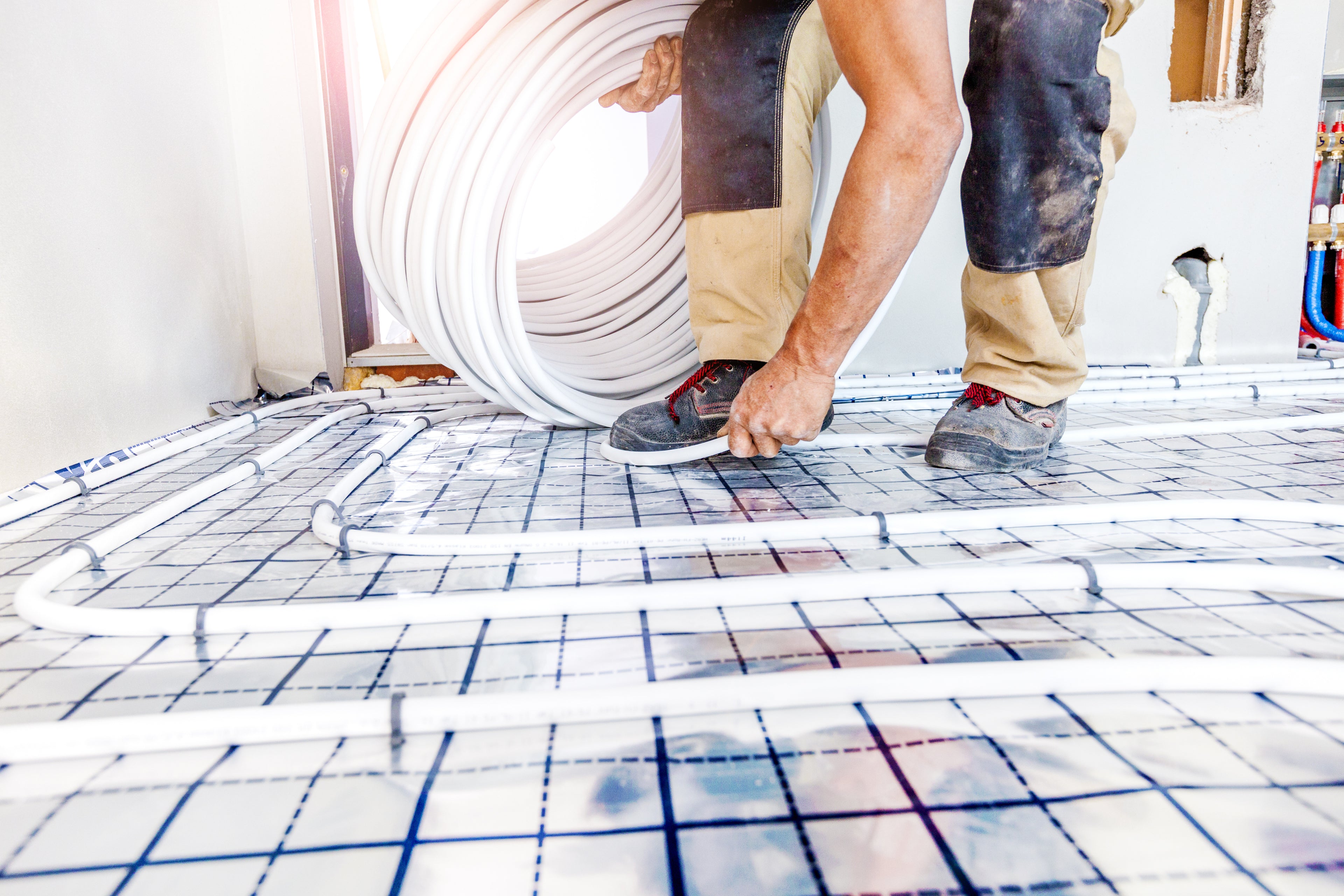

How Far Apart Should Underfloor Heating Pipes Be Laid?

The spacing of underfloor heating pipes depends on several factors, including the type of system, the desired heat output, and the type of flooring.

  • 150mm

    Closer spacing is ideal for areas that need higher heat output or have poor insulation. This is typically used in rooms with:

    • High heat demand (e.g., bathrooms)

    • Tiled flooring that requires more even heat distribution

    • Older buildings with less insulation

  • 200mm

    This is a standard spacing for many modern systems and offers a good balance between heat output and efficiency. It is suitable for:

    • Most living areas like bedrooms or living rooms

    • Homes with average insulation levels

    • Most floor coverings, including tiles, wood, or laminate

Key Factors to Consider:

  • Room Size and Layout: Smaller rooms may require closer spacing for even heating, while larger areas might allow for wider gaps.

  • Flooring Type: Tiled or stone floors usually require closer spacing due to their high thermal conductivity, while carpeted or wooden floors can accommodate wider pipe centres.

  • Insulation Quality: Poorly insulated floors need closer pipe spacing to ensure the room stays warm.

  • Heat Source: The type of heat source (e.g., heat pump or boiler) may influence pipe spacing. Lower-temperature heat sources, like heat pumps, often require closer spacing to deliver sufficient heat.

In general, spacing around 200mm is a safe standard for many systems, but more precise measurements depend on the specific heating requirements of the room and the building's insulation level.
