Why Insulation Is Essential for Electric Underfloor Heating

Electric underfloor heating delivers the best results when heat is directed upwards into the room, rather than being absorbed by the subfloor below. For tiled floors, this makes the choice of insulation especially important. Without a suitable insulating layer, electric heating mats can lose a significant amount of heat into concrete or timber subfloors, reducing comfort and increasing running costs.

This is where Thermopanel tile backer boards play a critical role. Installed beneath electric underfloor heating mats, ThermoPanel boards create a rigid, insulated base that reduces heat loss, improves warm-up times, and provides a stable surface for tiles. Designed specifically for tiled environments, they are one of the most effective insulation solutions for electric underfloor heating.

Frequently Asked Questions

1. What is electric underfloor heating?

Electric underfloor heating uses slim heating mats or loose heating cables installed directly beneath the floor finish. When powered, the system gently warms the floor surface, delivering even, radiant heat across the room without radiators or visible heating fixtures.

2. Why is insulation important for electric underfloor heating?

Without insulation, heat from electric underfloor heating mats can escape into the subfloor instead of entering the room. Insulation reduces this downward heat loss, helping the system warm up faster, maintain temperature more efficiently, and operate at lower running costs.

3. What are Thermopanel tile backer boards?

Thermopanel boards are insulated tile backer boards designed to be installed beneath tiles. Made from an insulated core with a reinforced surface, they provide thermal insulation, moisture resistance, and a strong bonding surface for electric underfloor heating mats and tiled floor finishes.

4. Are Thermopanel boards suitable for electric underfloor heating?

Yes. Thermopanel boards are specifically designed for use with electric underfloor heating systems in tiled areas. They provide insulation, structural stability, and excellent adhesion for heating mats and tile adhesives.

5. Where are Thermopanel boards commonly used?

Thermopanel boards are ideal for bathrooms, wet rooms, kitchens, utility rooms, and other tiled spaces where electric underfloor heating is installed.

How Electric Underfloor Heating Works Under Tiled Floors

Electric underfloor heating systems installed beneath tiles use heating mats or cables positioned close to the finished surface. Once energised, the system warms the tiles directly, allowing heat to radiate evenly into the room.

Because tiles conduct heat very efficiently, electric underfloor heating is particularly effective in tiled spaces. However, without insulation beneath the heating system, much of that heat can be lost downward — making insulation boards essential.

Why Thermopanel Boards Are Ideal Beneath Electric Heating Mats

Thermopanel tile backer boards sit directly between the subfloor and electric heating mats, creating a firm, insulated base designed specifically for tiled electric underfloor heating installations.

Improved Thermal Efficiency

Thermopanel boards reduce heat loss into the subfloor, ensuring more heat is directed upward into the room. This improves system efficiency and helps floors reach temperature more quickly.

Strong, Tile-Ready Surface

Unlike some insulation materials, Thermopanel boards provide a rigid, reinforced surface that is ideal for fixing electric heating mats and tiling directly on top. This stability helps prevent tile movement or cracking over time.

Moisture Resistance

Thermopanel boards are moisture-resistant, making them particularly suitable for bathrooms, wet rooms, and ground-floor installations where damp protection is essential.

Reduced Floor Build-Up

Thermopanel boards offer insulation without excessive floor height build-up, making them suitable for renovation projects where finished floor levels are critical.

Installing Thermopanel Boards with Electric Underfloor Heating

A typical tiled electric underfloor heating build-up follows this order:

1. Prepare the Subfloor

Ensure the subfloor is clean, dry, and level. Any uneven areas should be addressed before installing the boards.

2. Fix the Thermopanel Boards

Install ThermoPanel boards securely using appropriate fixings or adhesive, ensuring tight joints and a stable surface.

3. Install the Electric Heating Mats

Lay electric heating mats directly onto the Thermopanel boards following the manufacturer’s layout plan, taking care with spacing and floor sensor placement.

4. Tile Over the System

Apply flexible tile adhesive and install tiles suitable for use with electric underfloor heating.

Benefits of Proper Insulation in Tiled Electric UFH Systems

Lower Running Costs

By reducing heat loss, Thermopanel boards help electric underfloor heating systems run more efficiently, particularly in frequently used rooms.

Faster Warm-Up Times

Insulated boards allow tiled floors to reach comfortable temperatures more quickly, improving everyday usability.

Long-Term Reliability

A stable, insulated base helps protect heating elements and tiles, supporting reliable performance over many years.

Maintaining Electric Underfloor Heating in Tiled Areas

• Check thermostat and floor sensor operation periodically
• Avoid drilling into floors once installed
• Review heating schedules seasonally for efficiency

Investing in Efficient Electric Underfloor Heating

For tiled electric underfloor heating, insulation is not optional — it is essential. Using a purpose-designed solution such as Thermopanel Tile Backer Boards ensures improved efficiency, faster warm-up times, and long-term stability for both heating system and tiles.

When paired with quality electric heating mats and proper installation, ThermoPanel boards help deliver comfortable, efficient heating that performs exactly as intended.

Linked Product

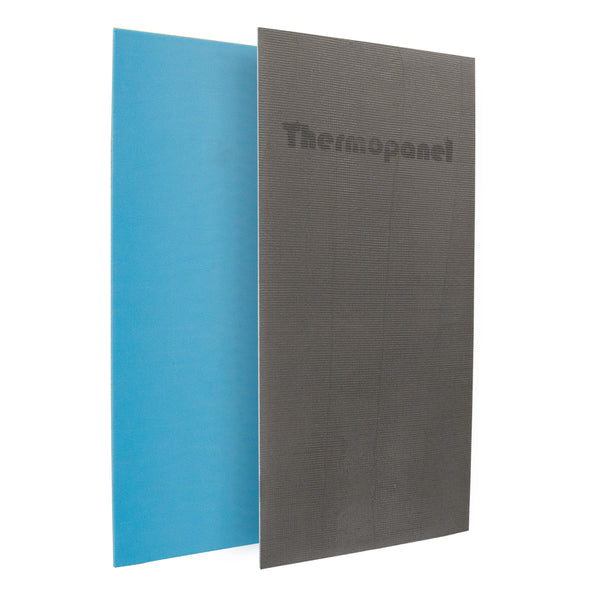

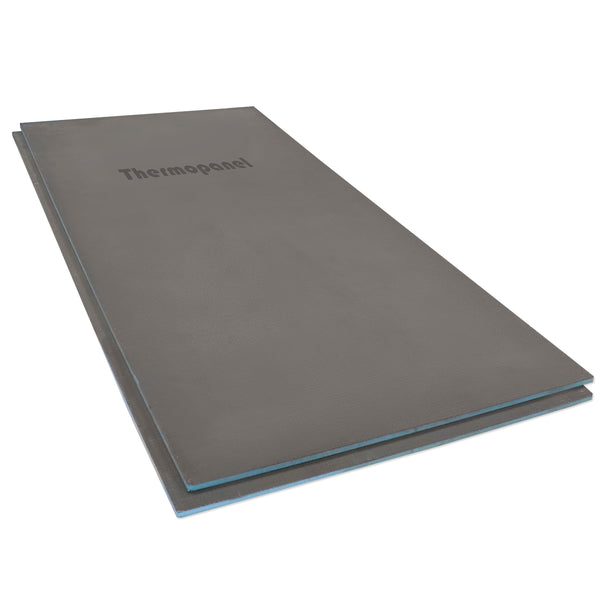

Thermopanel Tile Backer Boards – 1250 x 600mm
