8 Zone Wiring Centre - Wireless

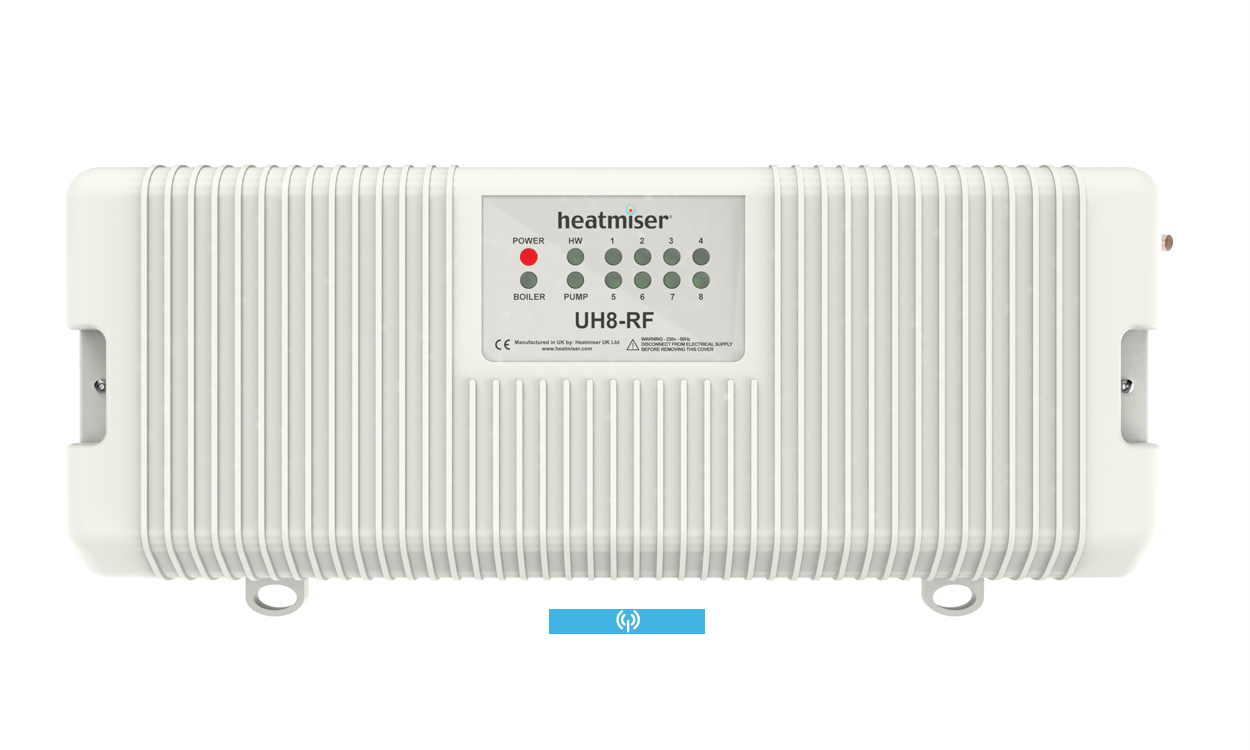

The UH8-RF provides central switching and is ideally installed next to the underfloor heating manifold. It can control up to 8 zones and includes an output for a hot water cylinder.

When a thermostat calls for heat, a 230V output is activated to switch the relevant zone actuators, underfloor heating pump, and valve. A volt-free boiler connection is included, making it compatible with almost all boiler types.

Each zone supports up to 6 actuators. An external aerial is available for use when the UH8-RF is mounted inside a metal cupboard or where wireless signal strength is limited.

The thermostat software allows you to configure zones as either underfloor heating or radiator zones. Radiator zones will not trigger the underfloor heating pump, valve, or boiler. Instead, they should activate the boiler via the valve’s end switch.

• Central wiring hub for up to 8 zones
• Output for underfloor heating valve and pump (activated by any thermostat calling for heat)
• Compatible with Heatmiser slimline thermostats
• Supports multiple radiator zones
• Includes output for domestic hot water
• Low voltage wiring to thermostats
• Actuator outputs: 230V
