Adept AD-TRAY In Screed Water Underfloor Heating Kits

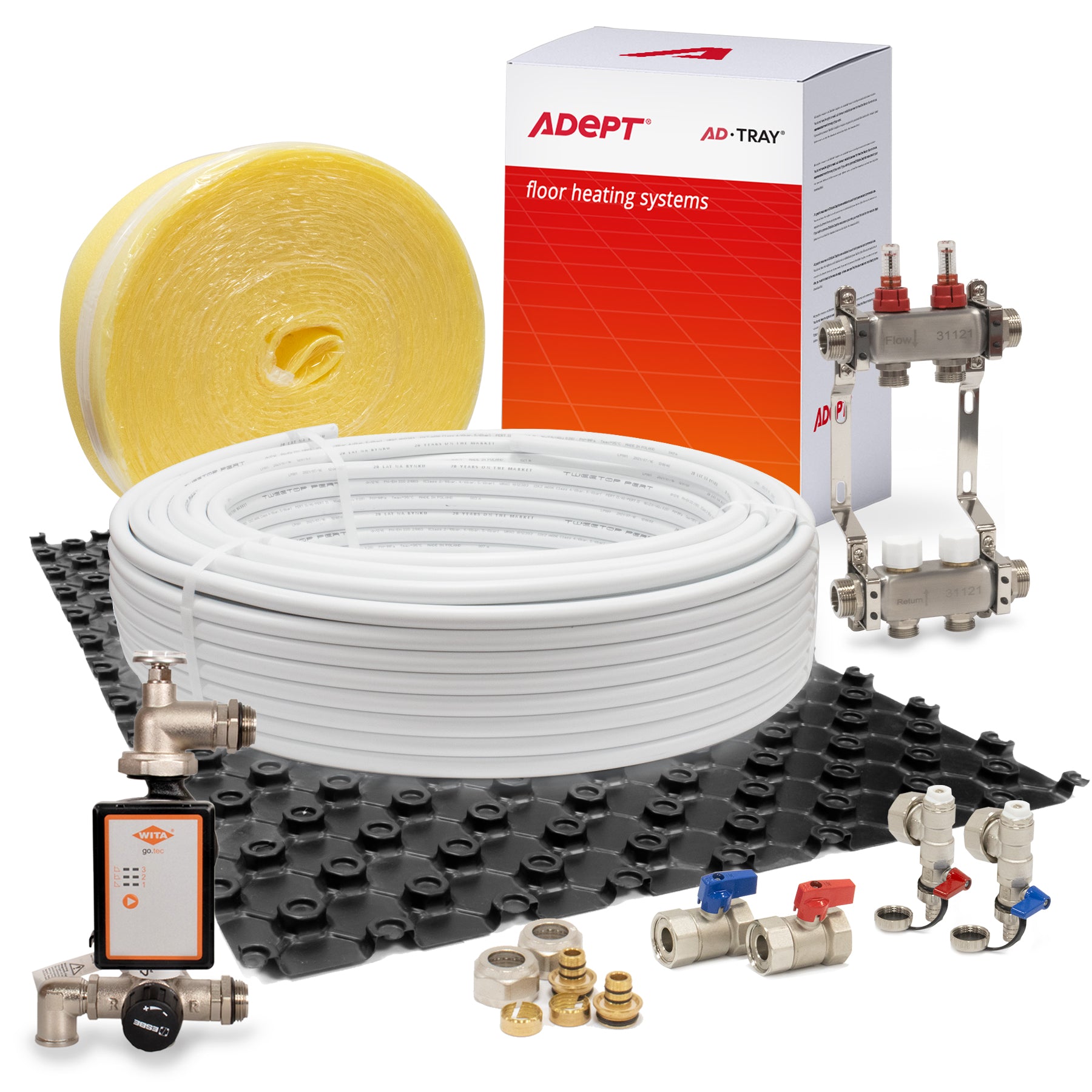

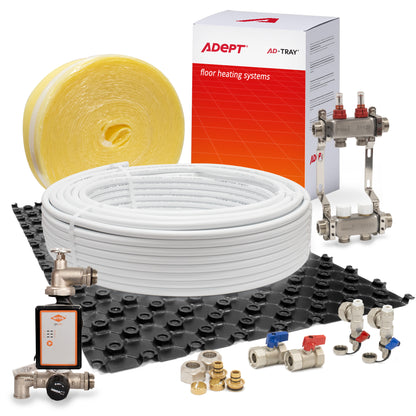

Adept AD-TRAY underfloor heating system is the premier heating kit, including an A rated pump (if selected) and WRAS Approved 16mm PERT-AL-PERT Pipe.

Adept AD-TRAY heating kits are all designed for a single zone, however can be adjusted with the use of any Adept or Heatmiser controls from within our store. The Kits are designed to use 200mm centres to output 100w/m2.

Adept AD-TRAY Specifications:

• Made from 100% recycled high impact plastic.
• Easy to install.
• Minimal amount of waste.

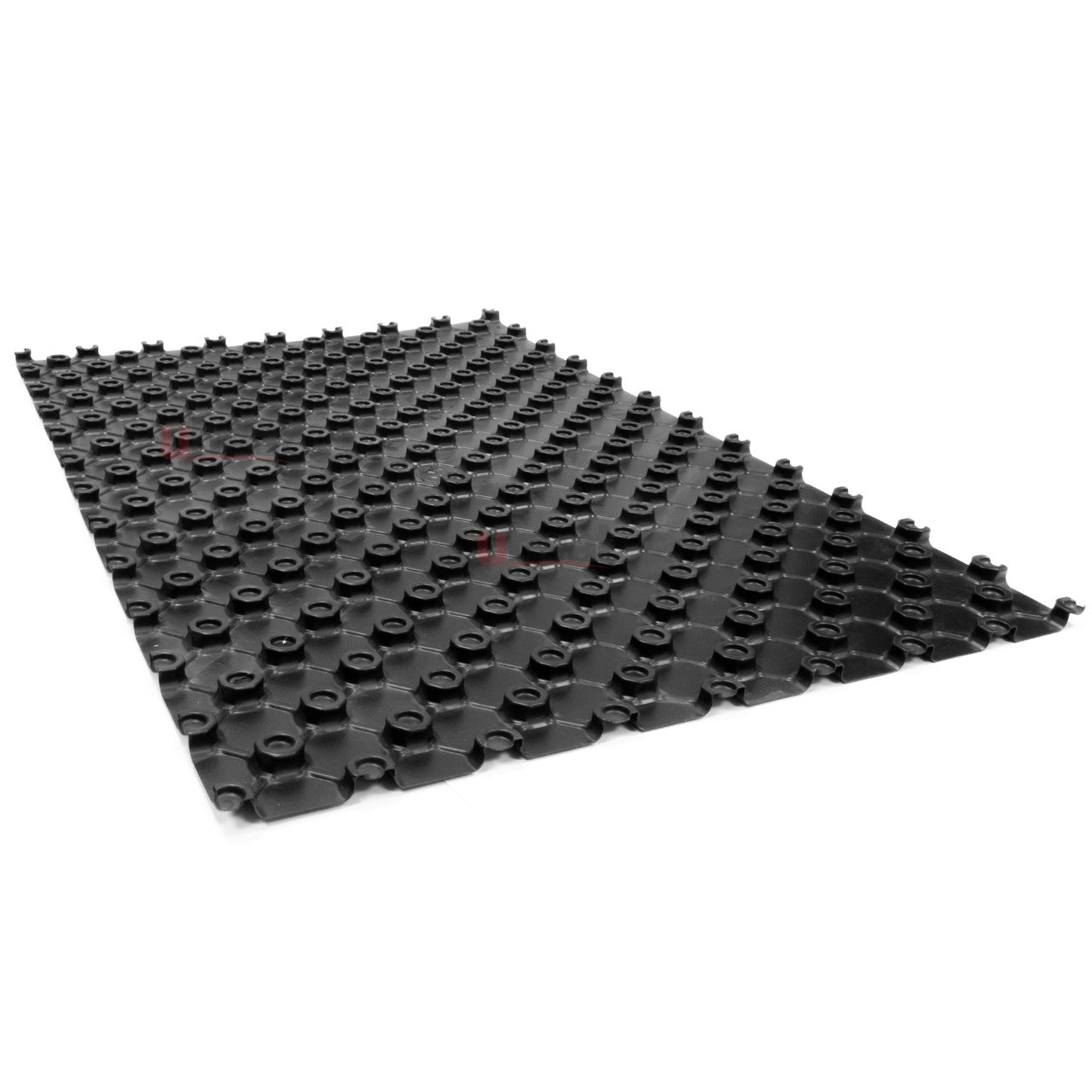

• Tray dimensions: 1220 x 820 x 20mm.
• Each panel covers approximately 1 square metre.
• Made in the UK.

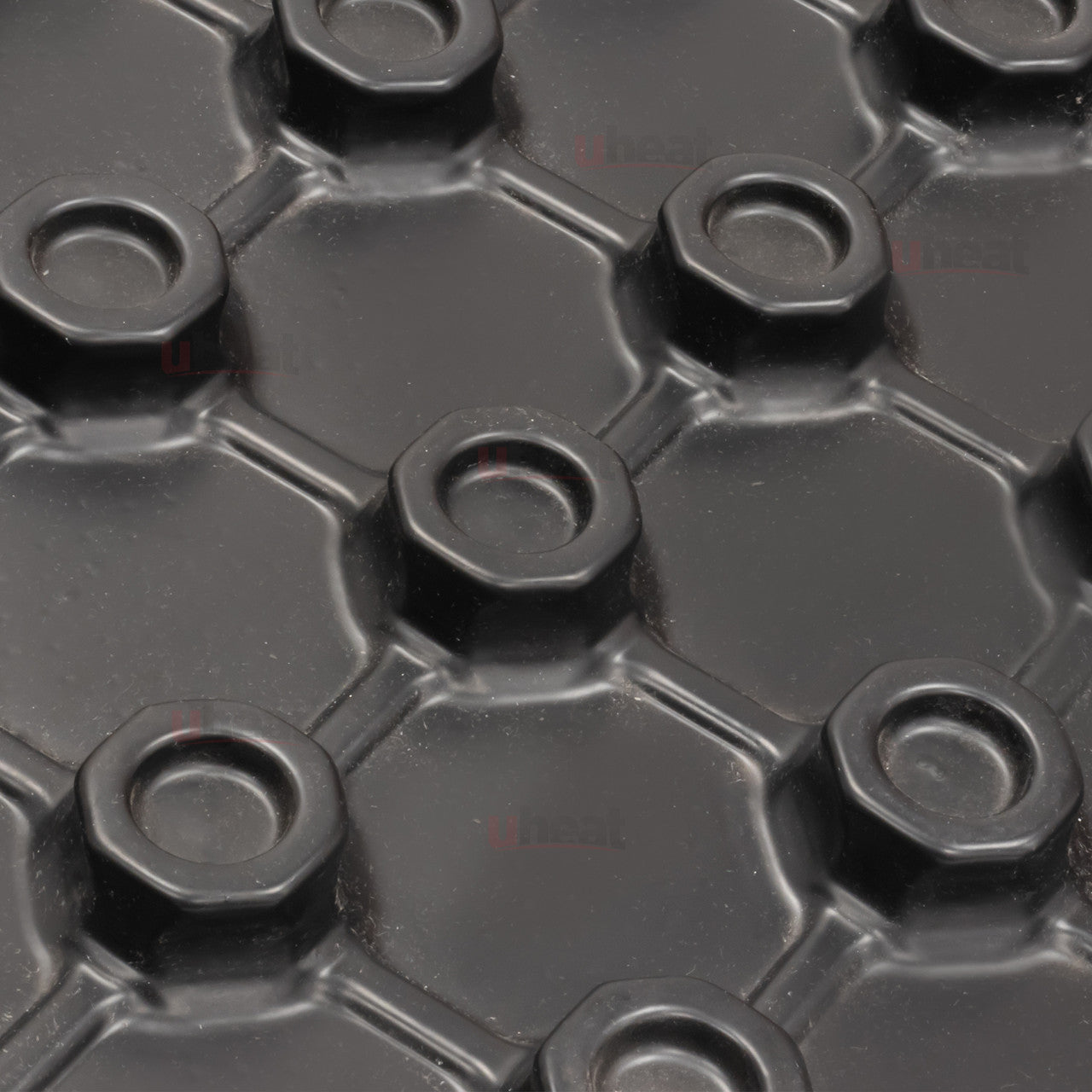

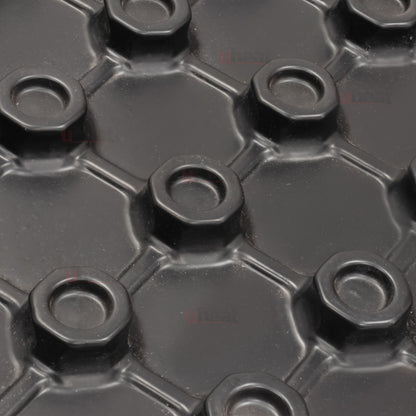

AD-TRAY floor panels allow for fast and easy installation. Trays can be cut to size to fit any room shape, and allow for accurate pipe spacing for even heat distribution.

	Kit Size (m2):
	20	40	60	80	100	120
Single Loop Control Pack:
Manifold & Control Pack:
Manifold Ports:		2	3	4	5	6
Pipe Length (m):	100	200	300	400	500	600
Pipe Connectors:
Edge Insulation:	25	25	50	50	75	75
Trays:	20	40	60	80	100	120

Notes:

• To comply with building regulations, you should use a minimum 65mm sand / cement screed or 50mm pumped screed.
