Elektra

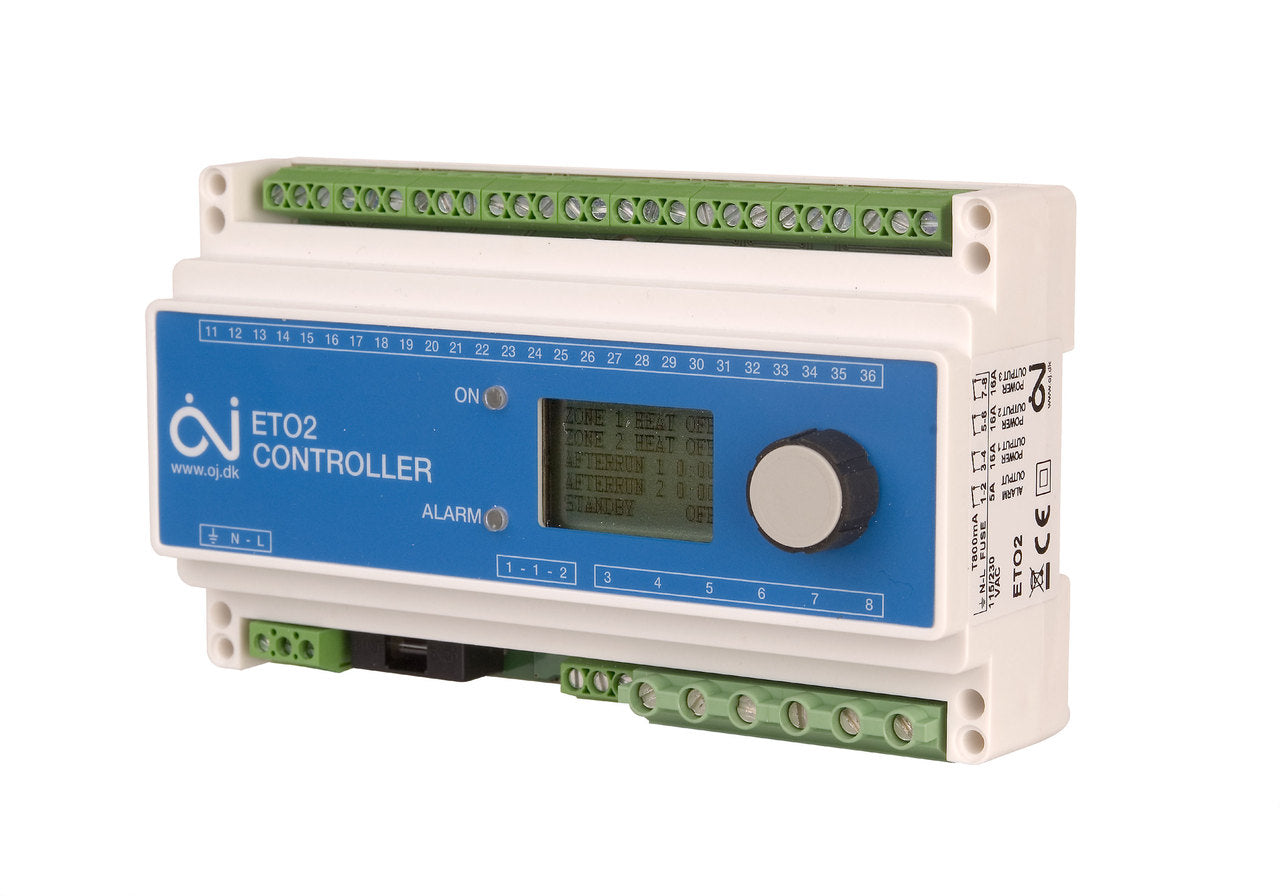

Din Rail Mounted Snow & Ice Thermostat

Din Rail Mounted Snow & Ice Thermostat

SKU:ETO2-4550

Low stock: 2 left

Regular price £476.99 GBP
Regular price Sale price £476.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Quantity
View full details

Description

The Electronic Temperature Controller ELEKTRA ETO2 is designed especially for snow and ice protection electric heating systems. Produced in accordance with EN 60730-1 and EN 60730-2-9. It consists of a controller, ground humidity and air temperature sensors or controller, gutter humidity and air temperature sensors (depending on the application). An all-in-one solution for ice- and snow melting usable for all outdoor applications. Optimal operation is ensured due to output control which makes the system both effective and economical.

  • Electronic on/off control up to 11 KW
  • 2 zone control
  • Roof and gutter, individually controlled at the same time and all in one product
  • Economical control of ice and snow melting in the outdoor area and gutters
  • Detection of temperature and moisture
  • Display and “knob wheel” for easy programming
  • Control of electrical or water based ice and snow melting systems
  • Alarm relay for external signal
  • Language options

Specifications

Power Supply: 120/230 V ~ 50/60 Hz

Built-In Transformer: 24VAC, 6VA

Max Load: 3x16A, 230 V ~ 50/60 Hz (potential free relays)

Installation: DIN-rail or surface mounting

Temperature Range: 0°C ÷ +5°C

Difference/Hysteresis: 0.3K Controller cover protection (surface mounting) IP 21

Work Signalization: LED

Temperature Sensor Calibration: Potentiometer

Dimensions (H x W x D): 90 x 156 x 45mm

Modules: 9
