Elektra

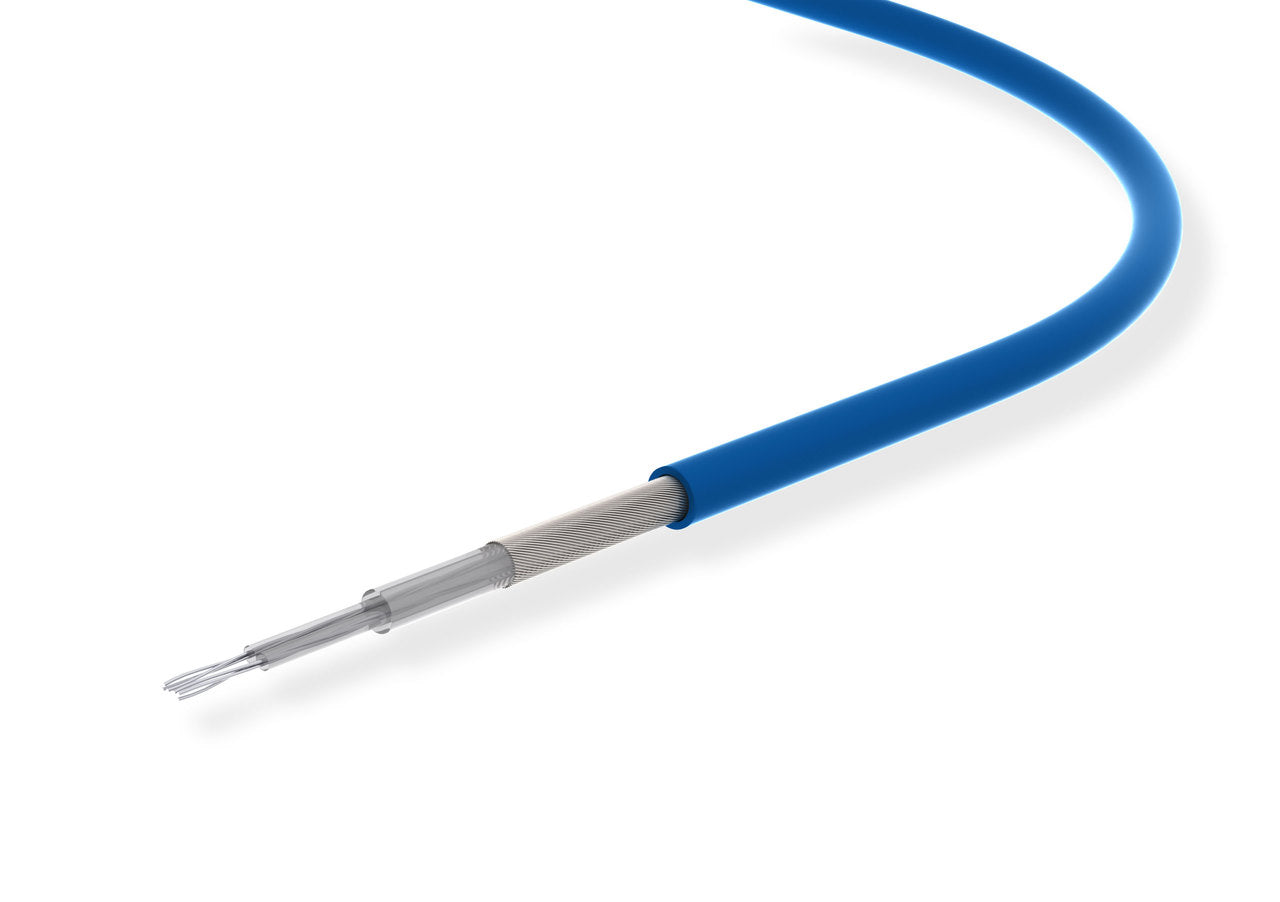

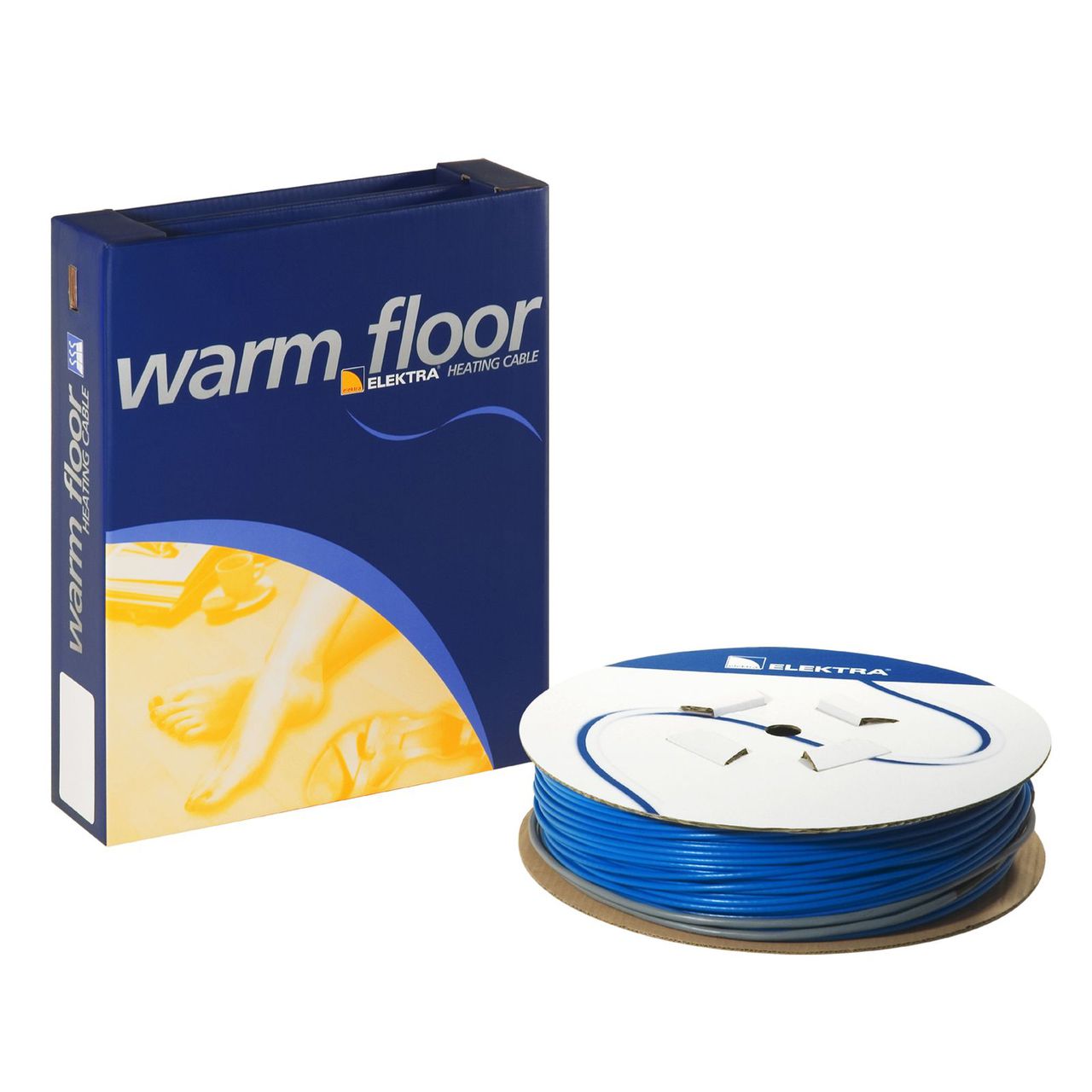

Electric Undertile Heating Cable

Electric Undertile Heating Cable

DM10KIT/135

Low stock: 3 left

£68.99 GBP
£68.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
View full details
Trustpilot
4.9/5
Feefo
4.9/5

Description

Install this Under tile Heating Cable within either a flexible tile adhesive or a self levelling compound under floor tiles.

Manufactured in Europe complying with ISO 9001 using the highest quality raw materials, in accordance with IEC EN 60335-2-96. Elektra electric underfloor heating mats have gained many approvals around the world, including the German VDE - probably the highest standard in Europe.

CE Certified

Lifetime guarantee is available for Elektra MD Underfloor heating mats and UK based technical support for the installation / operating of the underfloor heating is provided by our experienced & qualified technicians.

Guide To Buying

Part No. Power Length Wood Base Area (m2) Concrete Base Area (m2)
DM10/90 90W 9m 0.7 to 1.0 0.45 to 0.65
DM10/135 135W 13.5m 1.0 to 1.2 0.65 to 0.9
DM10/145 145W 15m 1.2 to 1.7 0.9 to 1.1
DM10/220 220W 22.5m 1.7 to 2.2 1.1 to 1.5
DM10/285 285W 28.5m 2.2 to 2.8 1.5 to 1.9
DM10/320 320W 32m 2.8 to 3.3 1.9 to 2.1
DM10/400 400W 40m 3.3 to 4 2.1 to 2.5
DM10/450 450W 45m 4 to 4.5 2.5 to 2.8
DM10/555 555W 55m 4.5 to 5.5 2.8 to 3.6
DM10/690 690W 70m 5.5 to 6.9 3.6 to 4.5
DM10/780 780W 78m 6.9 to 7.8 4.5 to 5.2
DM10/980 980W 98m 7.8 to 9.8 5.2 to 6.5
DM10/1100 1100W 110m 9.8 to 11 6.5 to 7.3
DM10/1320 1320W 132m 11 to 13.2 7.3 to 8.8
DM10/1650 1650W 165m 13.2 to 16.5 8.8 to 11
DM10/2050 2050W 203m 16.5 to 20.5 11 to 13.6

Specifications

Cable Thickness: 4.3mm (Max)

Min Installation Temp: -5oC

Max Working Temp: +110oC

Cold Tail: 1No. 2.5 metres long - 3 cores

Insulation: FEP (Teflon) + XLPE

Outer Sheath: Heat Resistant PVC

Output Power Tolerance: +5%, -10%

Min Bending Radius: 5D

IP Rating: IPX7

Don't Forget Your Thermostat...
