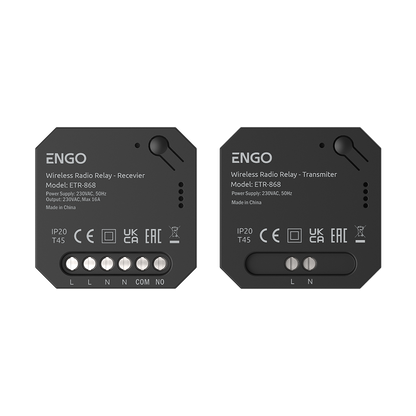

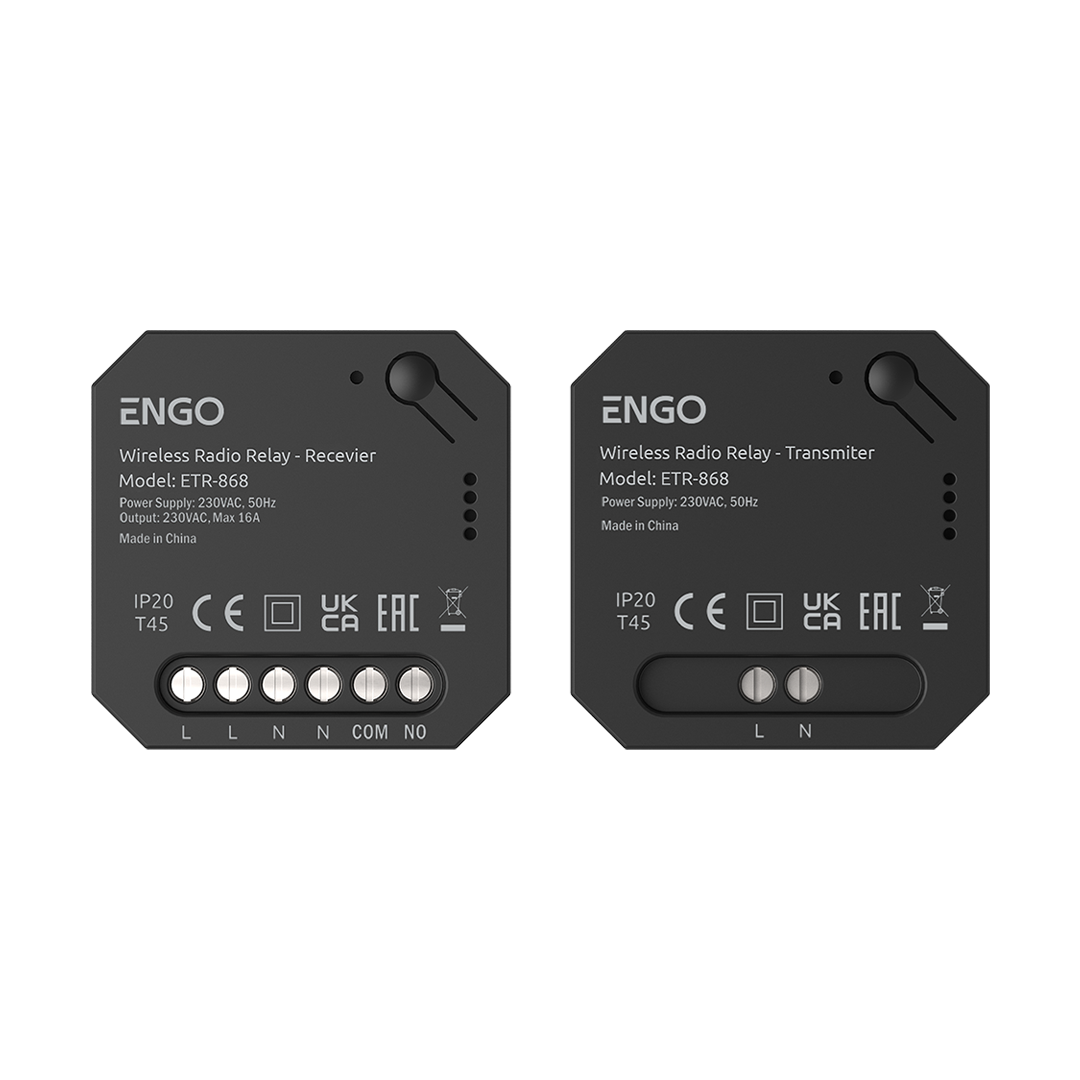

ENGO ETR-868 Wireless Relay Transmitter & Receiver Kit

The ENGO ETR-868 EngoLink wireless relay kit connects heating controls to a boiler, circulation pump or other compatible device where running a control cable is impractical. Supplied with a factory-paired transmitter and receiver, it provides wireless on/off switching over 868 MHz.

Key Features

• Wireless heating control: Ideal for retrofit installations and linking a wiring centre to a heat source or pump.
• Ready-paired kit: Transmitter and receiver are paired at the factory.

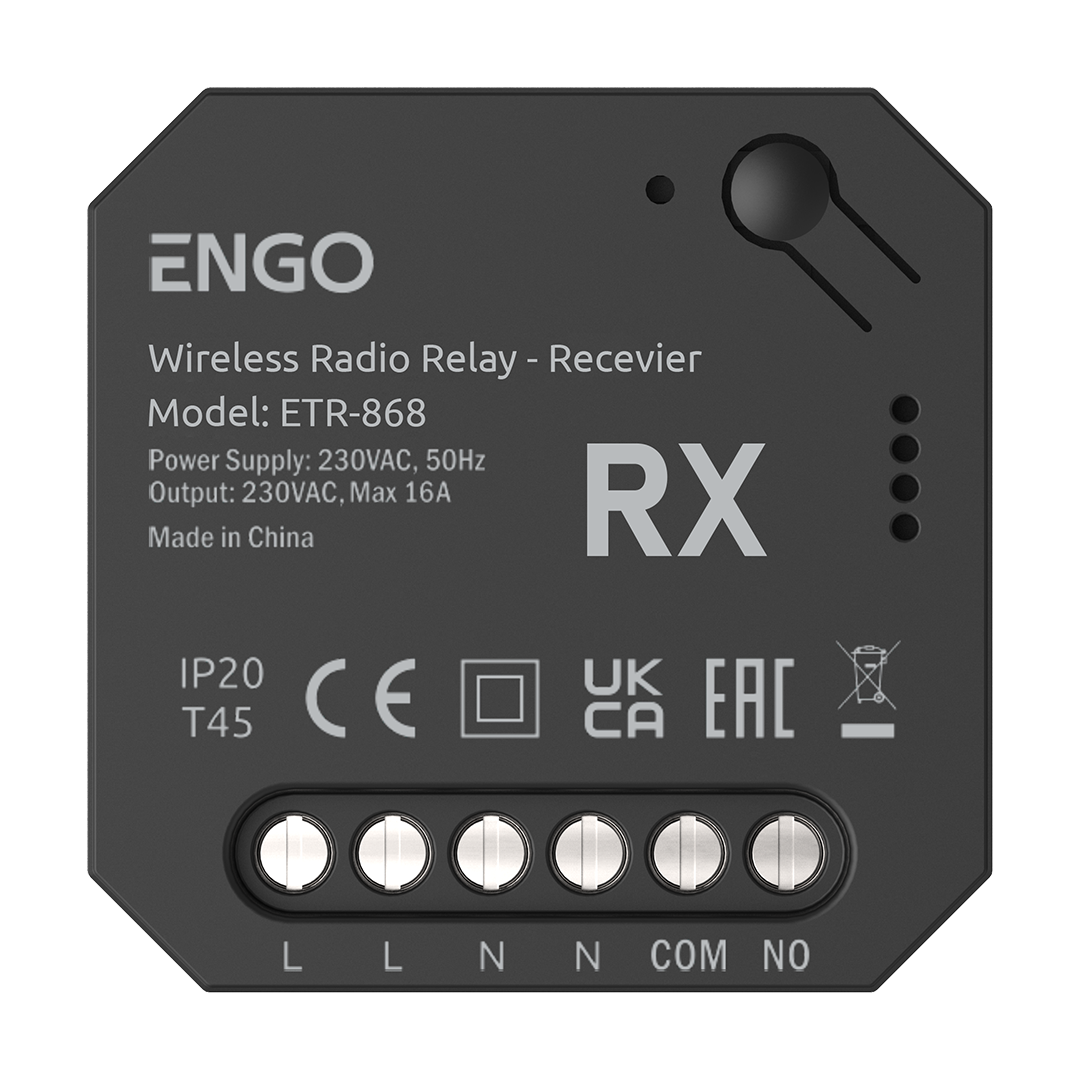

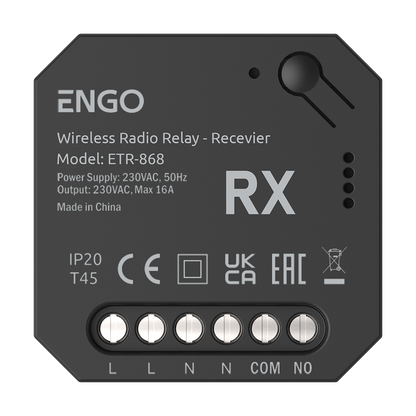

• Volt-free output: Receiver uses COM/NO relay contacts for compatible control circuits.
• Compact installation: Each module measures 46 × 46 × 24 mm and can fit in an installation box or mount on a DIN rail using the included brackets.
• Status indicators: LEDs show device operation.

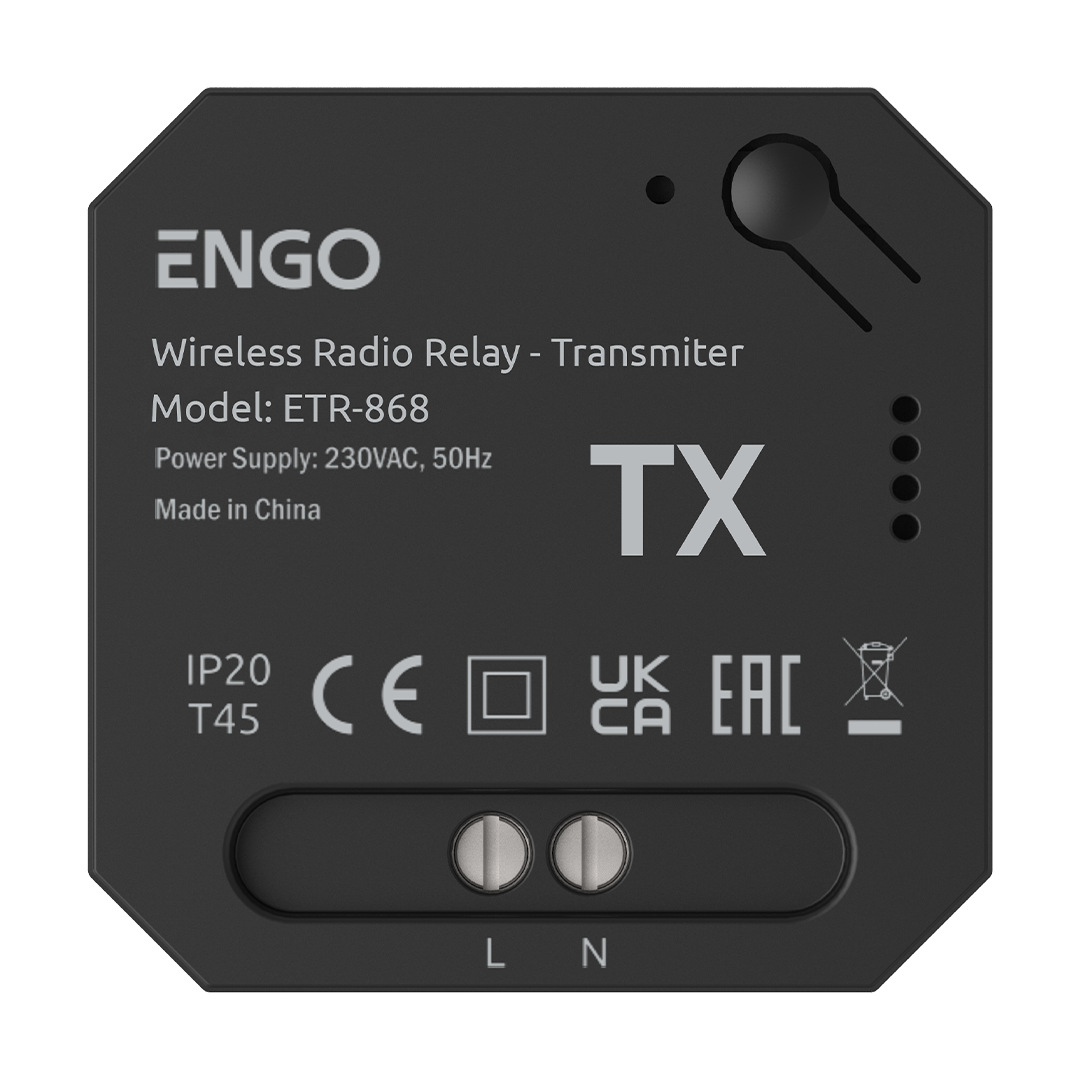

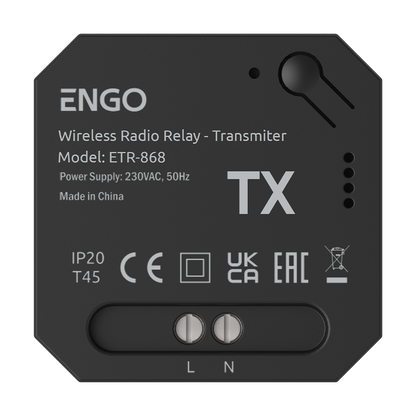

• Power-loss shutdown signal: The transmitter's built-in supercapacitor allows it to send an OFF command when its power supply is disconnected.
• Expandable control: Additional compatible receivers can be paired to one transmitter.

Technical Specifications

What's Included

One transmitter, one receiver and DIN rail mounting brackets. DIN rail is not supplied.

Installation: For indoor use in dry conditions. Both modules require a 230 V AC supply. Installation must be carried out by a suitably qualified person following the manufacturer's instructions.

Downloads

ETR-868 installation and quick guide (PDF)
