Elektra FreezeTec® Heating Cables

The ELEKTRA FreezeTec system protects pipes and valves even during freezing winter conditions. With FreezeTec, you can prevent damage to water mains or valves—indoors or outdoors—easily and reliably. The system is quick and easy to install and is specifically designed for pipes and valves vulnerable to freezing temperatures.

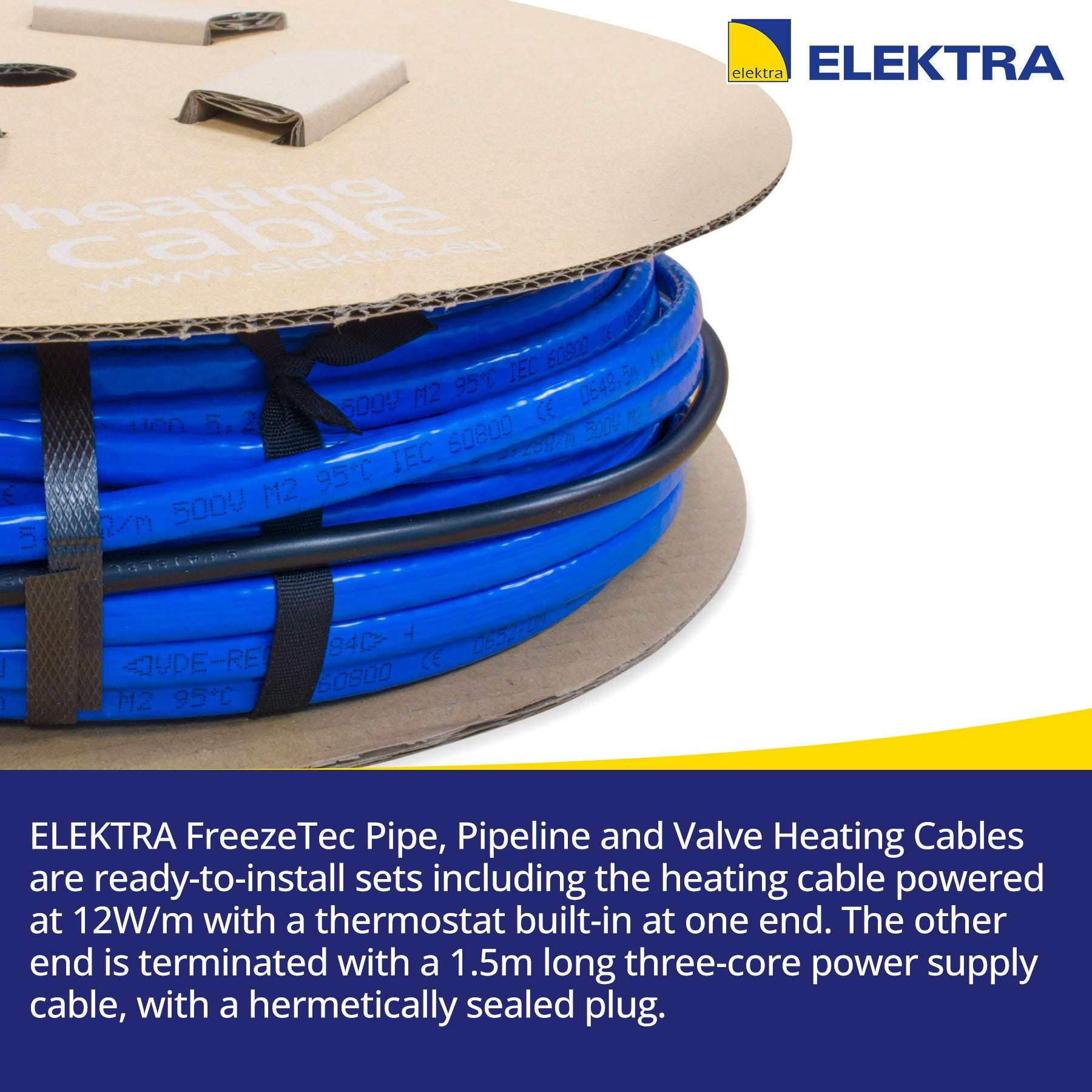

ELEKTRA FreezeTec heating cables are ready-to-install sets, powered at 12W/m, and include a built-in thermostat at one end. The other end features a hermetically sealed plug with a 1.5m long three-core power supply cable. The thermostat automatically switches the cable on at +3°C and off at +10°C.

FreezeTec Can Be Used to Prevent Freezing In:

• Water fixtures
• Sewage systems
• Sprinkler systems
• Hydrants
• Air conditioning and ventilation pipe systems

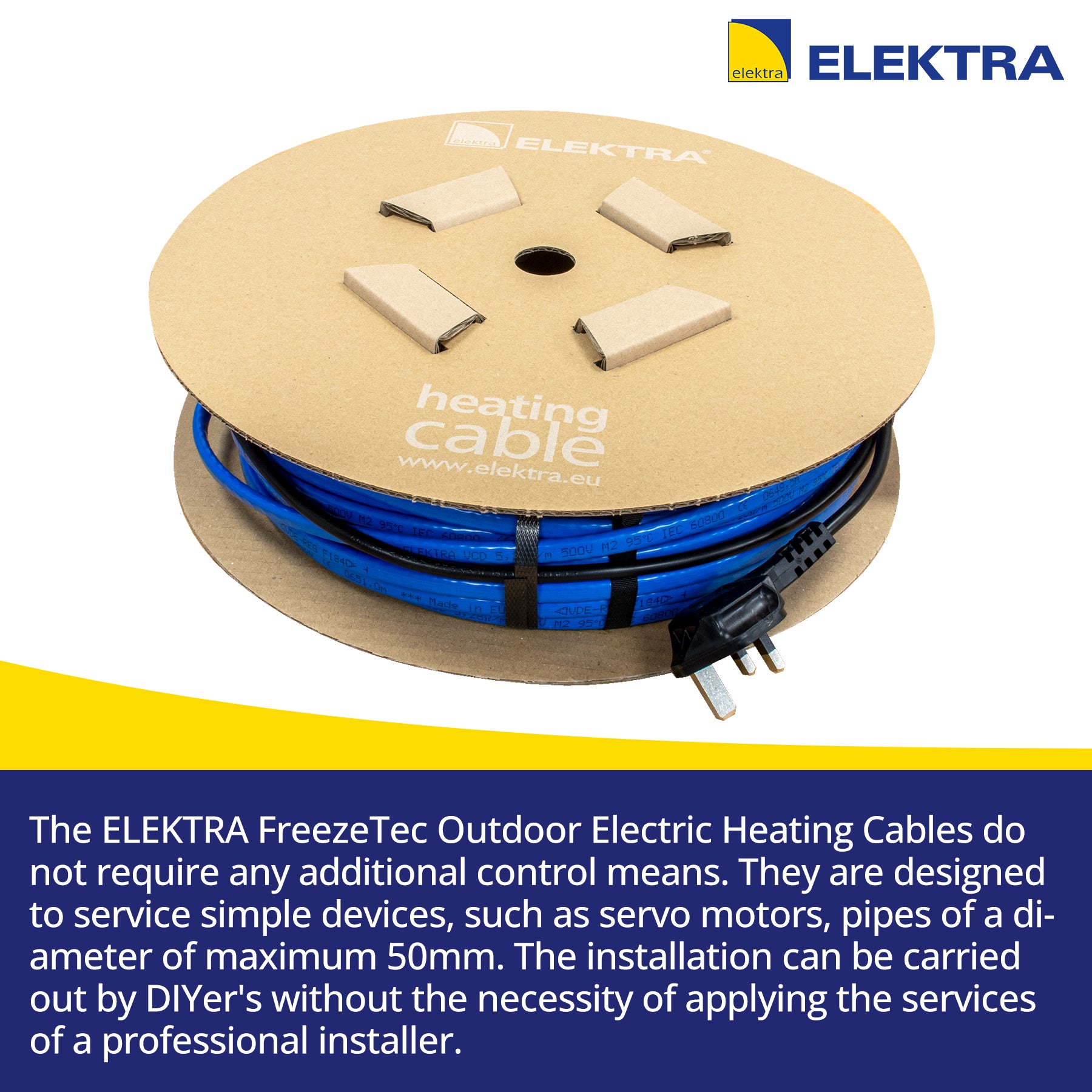

These outdoor heating cables require no additional controls. They are designed for simple installations, such as around servo motors or pipes up to 50mm in diameter. Installation is DIY-friendly—no professional installer required.

Usage Conditions:

• Maximum external pipe diameter: 50mm
• Recommended insulation thickness: 10–20mm
• Maximum pipe temperature: +65°C
• Minimum ambient temperature: –25°C
