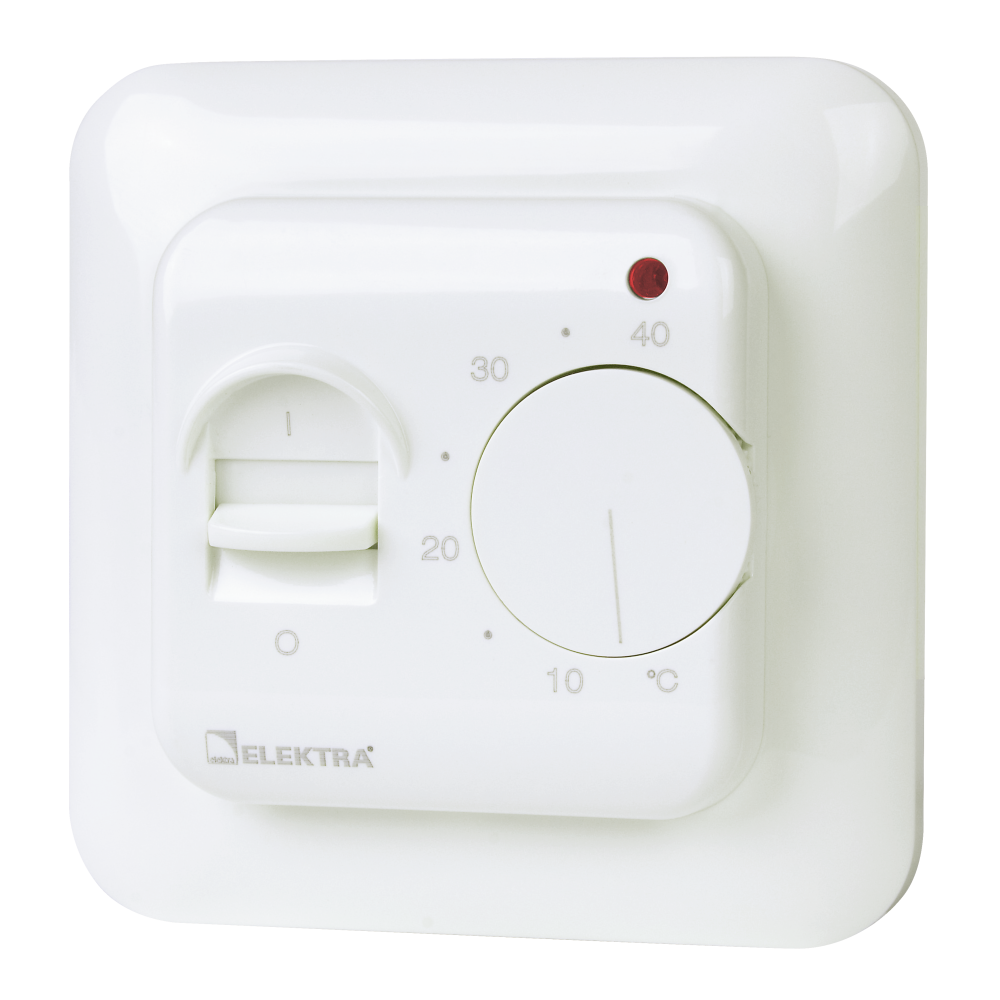

Manual Thermostat c/w Floor Sensor

Manual Dial Thermostat utilised for the accurate control of electric underfloor heating.

• Flush mounted in a standard flush back box
• Integral on/off switch for when you do not require heating
• Will control up to 3600W, 16 Amp
• Graduated scale (5 to 40°C) makes it easy to set the required floor temperature
• Adjustable scale to limit minimum and maximum temperature

Installation:

1. Remove the dial by simply pulling it. This will reveal a screw—remove it to take off the front plate of the thermostat.
2. Terminate the thermostat as shown in the wiring diagram.
3. Fit the thermostat into the wall-mounted box by screwing the back case to the mount.
4. Replace the front of the thermostat, tighten the screw to secure it, and finally replace the dial.
